Saturn P measuring marking machine Easy to operate, stable operation, wear-resistant and lightweight

Product Description

This marking machine is different from ordinary marking machines. The length direction of the main machine of ordinary marking machines can only move back and forth in a fixed direction. Saturn P measuring marking machine is equipped with a specific slotting work platform. It can move horizontally or vertically to any position of the platform where there is a positioning groove on the platform. Therefore, only one main machine is needed to complete the marking of four vertical surfaces of various complex super-large and super-wide workpieces.

◆The special X-axis guide mechanism makes steering extremely simple and easy to move.

◆Select precision displacement sensors with high IP protection level to ensure that they meet the on-site use environment

◆The column and horizontal arm are made of high-strength lightweight aluminum alloy materials, which are easy to operate and reduce the user's operating fatigue. After natural and artificial aging, as well as deep anodizing treatment, the whole machine is guaranteed to be stable, wear-resistant and lightweight; and the super-hard aluminum alloy material can be better applied to the magnetic grid sensor system, completely eliminating the phenomenon of "demagnetization" of the magnetic grid caused by steel and iron materials.

◆The Y direction adopts a central steel support and fine-tuning structure to strengthen the cantilever rigidity and effectively eliminate the deflection deformation in the Y direction.

◆Real-time three-axis coordinate display.

◆Standard stylus head component to meet the needs of marking and measurement.

Technical Indicators

Unit: mm

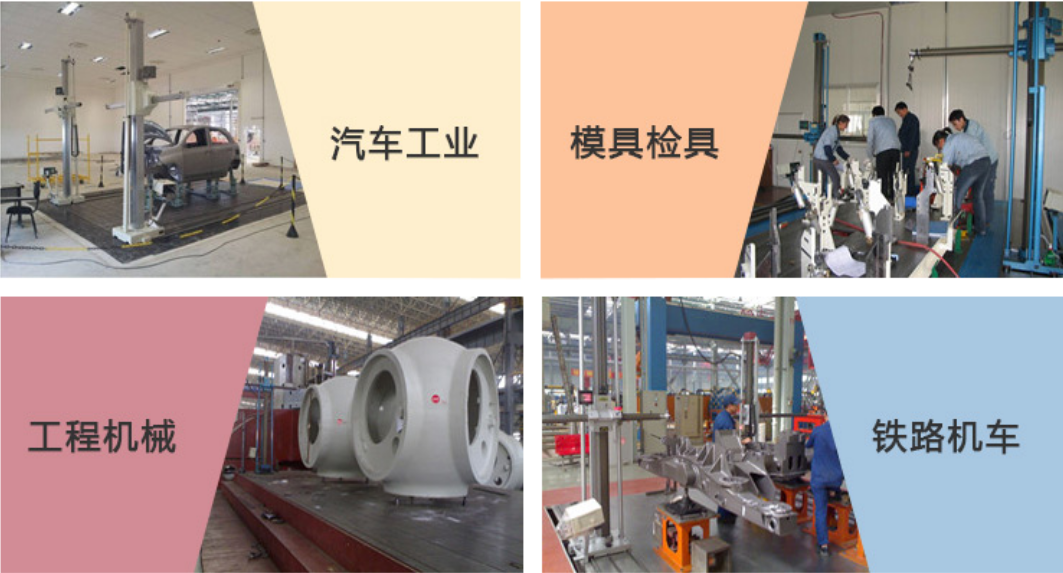

Application Case
