Galaxy S Clay Model Milling Machine

The machine has higher strength and rigidity; at the same time, the spindle cutting power is increased to meet the requirements of better cutting performance.

Product Description

The Galaxy S series clay model iron chipping machine is a new multifunctional machine integrating 3D measurement and milling. The product is mainly used for automotive styling, industrial design and various groups engaged in building development to meet the needs of rapid production and testing of design models.

Technical Indicators

Measuring/cutting height (Z)	2000	2200	2500	2600	2800	3000	3100
Measurement/cutting degree(Y)	1200	1300	1400	1500	1600	1700
Measuring/cutting length (X)	1000~20000
Single axis positioning accuracy	±( 0.03+0.03L), L unit: m
Cutting accuracy	±0.2mm (cutting Φ180 oil mud ball)
Running characteristics	Maximum no-load running speed: 12000mm/min Maximum cutting speed: 6000mm/min
Applicable materials	Foam, clay, wood and other light resin materials, etc.
Cutting head	Milling axis power: 3Kw Cutting head Maximum speed: 15000rpm Tool diameter: Φ4-Φ20mm
Power supply	Three-phase 380V(±15%)/50Hz
Power consumption of the whole machine	10Kw/single machine
Remarks	Special specifications can be customized on demand

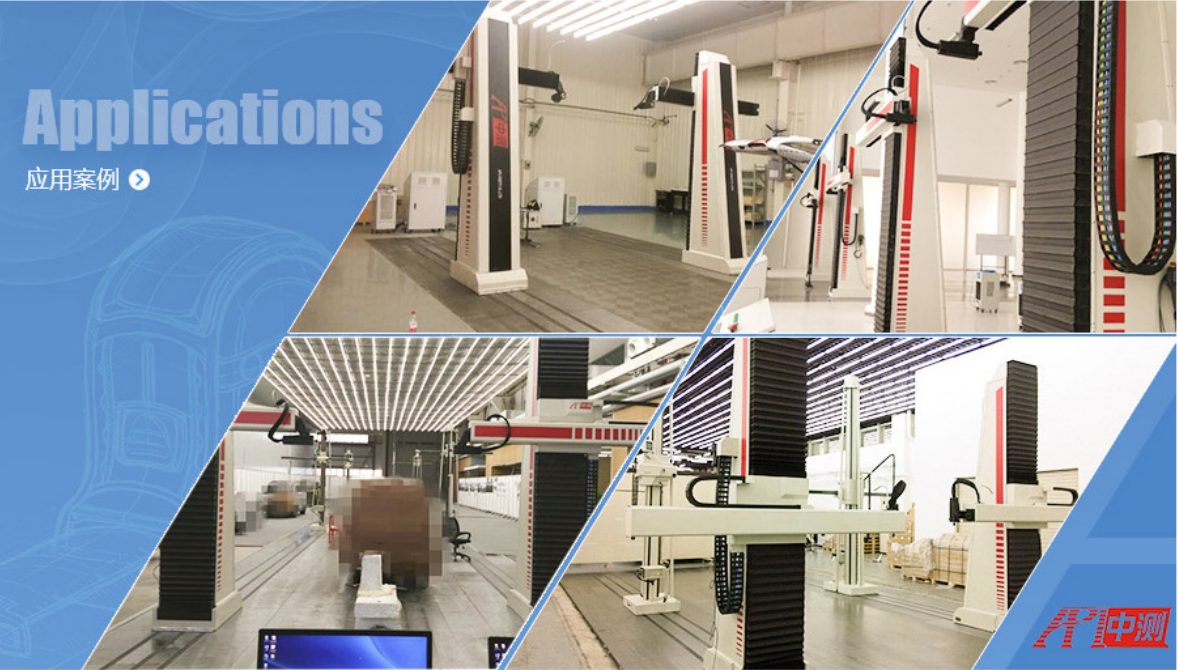

Application Cases
